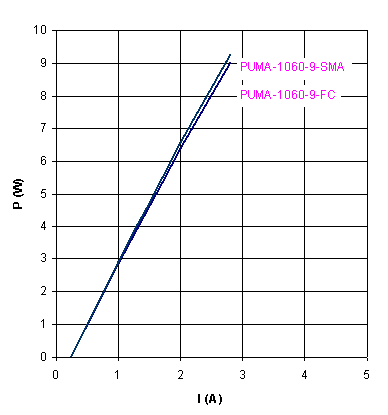

Output Power (in the fiber):
| |
|
 |
| Optical |
| Output optical Power (W) |
9 |
9 |
| Wavelength (nm) |
1060 |
1060 |
| Wavelength Tolerance (nm) |
15 |
15 |
|
|
|
| General |
|
|
| LDcurrent (A) |
2,6 |
2,8 |
| Power supply voltage,min (V) |
12,6 |
12,6 |
| Power supply voltage,max (V) |
16 |
16 |
| Electrical Power (W) |
40 |
40 |
| Temperature Range (°C) |
10-35 |
10-35 |
|
|
|
| Fibre |
|
|
| Fibre core diametr (µ) |
105 |
170 |
| Numerical Aperture (µ) |
0,22 |
0,22 |
| Connectors type |
FC / PC |
SMA 905 |

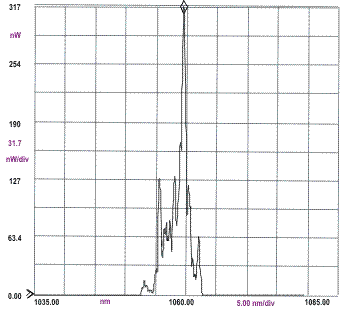

Lasing Spectrum:
Mechanical Specifications FC:
Mechanical Specifications SMA:
| Description:
ML-430 high brightnes Diode Laser System integrated:
LDs-Driver
TEC none
TEC-controller none
See manual for safe handing instructions.
|
