Maximal transmission and minimal scattering by eye optical tissues (cornea, crystalline lens, vitreous humor), hemostatic characteristics of near Infrared radiation are letting to use laser coagulator with 810 nm wavelength for solutions of various ophthalmosurgery tasks. Moreover, coagulation is easily endured by patients because of the absence of dazzling emission effect, that is especially important for pediatric ophthalmology.

Potential of laser coagulator is getting richer due to the implementation of different means of radiation delivery: slit lamp, binocular indirect ophthalmoscope , flexible fiber instruments.

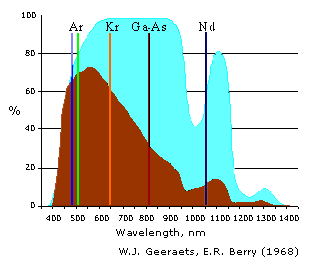

Spectral characteristics of eye tissues

transmission by optical tissues

absorption by epithelium of retina and choriodea

parameter

value

emission wavelength, nm

810

output optical power, W

0,1-3

aiming laser wavelength,nm

650

aiming laser output power, mW

0-1.0

exposition time

0,01s – 6 hours, continuously

impulse pause length,s

0.01 - 1

endoinstrument fiber core diameter, mkm

170 - 1700

diameter of the laser spot in focus plan on the use of slit lamp, mkm

150, 250

diameter of the laser spot in focus plan on the use of headworn indirect ophthalmoscope , mkm

400

power supply / electrical power, V/W

~100…..240V, 50-60hertz /100W

size, mm

200х170х280

weight, not more than, kg

7

Standard set

Laser Ophthalmological Coagulator "LAKHTA-MILON"

Magistral fiber

Power cord

Foot pedal

Тechnical documentation

Complementary equipment:

Laser adapter to a slit lamp *

Laser adapter to a headworn ophthalmoscope *

Laser adapter used with laser ophthalmological coagulator and a slit lamp for transpuppilary operations

Fiber instruments for transscleral operations:

Straight endoprobe G20

Angled endoprobe G20

Set of nozzles for cyclophotocoagulation (3 items)

Set of reusable endopieces G20

Endoprobe for transscleral retinopexy «Side-fiber»

* Adapter structure provides for the specialists' eye protection from reflected laser radiation.

Slit lamps with the upper lighter can be used:

TAKAGI ( SM-10; SM-70 )

REICHERT ( XCEL 400 )

TOPCON ( SL 7 F ; SL 3 F ; SL 3 C )

Laser adapter used with laser ophthalmological coagulator and headworn indirect ophthalmoscope for transpuppilary operations

KOWA ( SL -16 )

SHIN - NIPPON ( SL-203; SL-102; SL-101 )

INAMI ( L -187; L -185; L -0240 )

VISION66 ( YZ-5F1 )

and other.

Binocular indirect ophthalmoscopes:

Omega Heine 100, 200

Neitz -10-а

NBO-3 (ZOMZ)

and other.

Help on the purchase of slit lamps, headworn ophthalmoscopes is possible.
